MTK Manual

For correct installation and stable SigmaKey operation it is recommended to connect the dongle to the motherboard USB port directly avoiding USB HUB connection.

1. Install SigmaKey updater
2. Install SigmaKey drivers (available at your local PC in the Program Files\GsmServer\SigmaKey updater\drivers\ folder)
3. Launch SigmaKey updater
4. Select interface language
5. Connect SigmaKey dongle to PC USB port and press Next
6. The software should detect SigmaKey dongle and display its serial number
7. Message "Processing SigmaKey dongle" informs that update is in progress
8. Operation completed
9. SigmaKey is updated

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Unlock" tab
3. Power the phone On and then power it OFF completely (only if "Format FFS" was just performed)
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Read Unlock Codes" button and follow the instructions in the log window**
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
8. Message "Reading Unlock Codes… OK" indicates that procedure was completed successfully
9. Disconnect the handset
10. Turn the phone on with the non-original SIM card inserted
11. Phone's menu will pop-up with unlock code request
12. Enter the code that was read by SigmaKey Software

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Unlock" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Unlock" button and follow the instructions in the log window
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey shows an appropriate message in the log window, release "Power ON" button
8. The message "Unlock done… OK" indicates that procedure was completed successfully
9. Disconnect the handset
10. Phone is unlocked *

1. Go to "Calculator" tab
2. Choose desired model from the list
3. Choose provider ID from the list. In most cases, "provider ID" of your phone can be found at the sticker under the battery
   • For Motorola WX-series
   • Dial *#837#
   • Find the line that starts with *XJ
   • Choose that provider line in SigmaKey software
4. Enter phone's IMEI number
5. Click "Calculate" button and wait for calculation procedure to start *
6. Codes are calculated

If the code is not suitable:
* Calculated code might not be accepted if any changes were made to the original firmware (changed provider ID, unlock operation was performed, etc.). In this case you should use "Get unlock codes" procedure to generate correct unlock code.

If read and calculated codes match, but not working:
If read with "Get unlock codes" and "Calculate unlock codes" procedure codes match but not working, just read phone's backup and send it with the log file and calculated code to support@sigmakey.com for a detailed analysis.

EX108, EX109, EX112, EX115, EX118, EX119, EX122, EX126, EX128, EX211, EX212, EX223, EX245, EX292, WX345

Please perform Backup Flex and Calibration Backup before Unlock procedure, except for WX345.

Please remember that backup must be saved before Unlock operation.

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Unlock" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Unlock" button and follow the instructions in the log window
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey shows an appropriate message in the log window, release "Power ON" button
8. The message "Unlock done… OK" indicates that procedure was completed successfully
9. Disconnect the handset
10. Phone is unlocked**

** Please perform Restore Flex and Calibration Backup after unlock procedure, except for WX345

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Unlock" tab
3. Reboot your phone and power it OFF completely (only if "Format FFS" was just performed)
4. Connect* turned off phone to PC
5. Select an appropriate COM port in SigmaKey Software (usually the highest number)
6. Press "Read User Code" button and follow the instructions in the log window**
7. Press and hold "Power ON" button on the phone
8. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
9. Message "Reading Codes… OK" indicates that procedure was completed successfully
10. Active user code is marked in black, inactive – in grey
11. Disconnect the handset
12. Turn the phone on
13. Phone's menu will pop-up with user code request
14. Enter the code that was read by SigmaKey Software

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Export Phone Book" button and follow the instructions in the log window:
   • Press and hold "Power ON" button on the phone
   • As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
6. Wait until phone book export process will be finished. Phone book will be saved in *.html file format
7. Pop-up window will appear offering to choose a path to save file
8. When file will be saved, software will ask if you'd like to open file in the web browser; if confirmed, file with a list of contacts will be opened in the web browser
9. Disconnect the handset

Please perform Calibration Backup before Flash procedure

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Flash" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Write Flash" button and follow the instructions in the log window
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey shows an appropriate message in the log window, release "Power ON" button
8. SigmaKey will read phone's information and pop-up window with the flash file request
9. Choose appropriate flash file and press open
10. Message "Flash Completed" indicates that procedure was completed successfully and the handset can be disconnected

Please perform Calibration Restore after Flash procedure

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Flash" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually is the highest number)
5. Press "Backup Phone Flash" and follow the instructions in the log window
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
8. The message "Backup Saved" indicates that procedure was completed successfully
9. Disconnect the handset

Backup Calibration

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Backup Calibration" button
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
8. Choose location to save calibration file (in *.skb format)
9. Message "Reading Flash is Done" indicates that Calibration backup procedure was completed successfully

Restore Calibration

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Power ON the phone and then turn it OFF completely (only if "Format FFS"/"Write Flash" procedures were performed)
4. Connect* turned off phone to PC
5. Select an appropriate COM port in SigmaKey Software (usually the highest number)
6. Press "Restore Calibration" button
7. Press and hold "Power ON" button on the phone
8. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
9. Select required calibration file (in *.skb format)
10. Message "Writing Flash is Done" indicates that Calibration restore procedure was completed successfully

Backup Flex for EX-Series

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Connect powered ON phone to PC via original micro-USB cable
4. Select "COM-Port" mode from handset's menu
5. Install drivers, in case they weren’t already installed (drivers are available at your local PC in the Program Files\GsmServer\Sigma\drivers\MTK USB Driver folder)
6. Select an appropriate COM port (USB Modem driver (COM XX) *MTK) in the SigmaKey Software
7. "Backup Flex" button will become active if an appropriate com-port is selected
8. Press "Backup Flex" button and choose location to save flex file
9. Message "Done. Restarting phone" indicates that backup procedure was completed successfully, handset restarts and can be disconnected

Restore Flex for EX-Series

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Connect powered ON phone to PC via original micro-USB cable
4. Select "COM-Port" mode from handset's menu
5. Install drivers, in case they weren’t already installed (drivers are available at your local PC in the Program Files\GsmServer\Sigma\drivers\MTK USB Driver folder)
6. Select an appropriate COM port (USB Modem driver (COM XX) *MTK) in the SigmaKey Software
7. "Restore Flex" button will become active if an appropriate com-port is selected
8. Press "Restore Flex" button and select required flex file (in *.skb format)
9. Message "Done. Restarting phone" indicates that flashing procedure was completed successfully, handset restarts and can be disconnected

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "IMEI" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Enter IMEI number in the "Phone IMEI" field **
6. Press "Restore IMEI" and follow the instructions in the log window
7. Press and hold "Power ON" button on the phone
8. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
9. The message "Writing IMEI… OK" indicates that procedure was completed successfully
10. Disconnect the handset

Please perform Calibration Backup before "Format FFS" procedure

1. Connect SigmaKey Dongle to PC USB port and launch SigmaKey Software
2. Go to "Service" tab
3. Connect* turned off phone to PC
4. Select an appropriate COM port in SigmaKey Software (usually the highest number)
5. Press "Format FFS" button and follow the instructions in the log window
6. Press and hold "Power ON" button on the phone
7. As soon as SigmaKey Software shows an appropriate message in the log window, release "Power ON" button
8. Message "Format FFS... OK" indicates that procedure was completed successfully
9. Disconnect the handset

Please perform Calibration Restore after "Format FFS" procedure.

In order to download files from Boot-Loader v2.0 portal, you have to perform these few easy steps after SigmaKey registration:

1. Download and install Boot-Loader Download Manager.
2. Connect SigmaKey dongle to PC.
3. Launch Boot-Loader Download Manager. When prompted, enter your Boot-Loader v2.0 login and password.
   If download manager is already open, select Settings: Devices in the top menu.
4. Download manager will scan connected devices and pop-up a dialog box.
5. Follow Register link to register your device.
   If SigmaKey Dongle is already registered, click Next button.
6. Go to My Account: Device Accounts section to check your device's status and download allowance.
   If you're allowed, you can follow to Sigma category and start downloading files.

Phone MCU boost mode
Accelerates operations execution in the phone.

Force simple mode (slower)
Certain flash memory chips have issues with block programming method. In this case it's possible to work with slower and more reliable flashing method – "word" flashing method. Such method is 3-4 times slower but allows you to work with wider variety of microchips. We recommend using this method in case you have any troubles with block method.

Smart write (faster)
With this option flashing process is accelerated by avoiding reprogramming if the data which is about to be programmed matches the existing data.

Check IMEI patch made by third party tool
This option is ticked off by default. It allows you to check whether software IMEI was patched by third-party software of not.

Use existing CUST_PARA data (Alcatel flashing)
With this option you'll be able to work with "CUST PARA" area in the phone’s firmware. If "Upgrade firmware" option is active, then "CUST PARA" area will be preserved (i.e. backed up and restored after flashing). If "Upgrade firmware" option is inactive, this area will NOT be preserved and phone will use default data instead. Note that options "Upgrade firmware" and "Write full raw backup" are mutually exclusive.

Backup phone calibration data
Allows you to save phone's network calibration in the backup file.

Skip external RAM test (Research backup)
If the phone "freezes" during "test external RAM" operation, then "Skip external RAM test" option has to be ticked on. After operation phone's backup should be saved and sent to support@sigmakey.com. Please notice that if "Skip external RAM test" option is ticked on, all options except "Read phone backup" will be inactive.

Different types of MTK CPUs have different connection speed. Note that stability of the "Autodetect" function depends on your PC performance. If you aren’t able to connect your phone to PC with "Autodetect" option turned on and you know exactly what type of CPU your phone is running, just choose the correct speed.

List of CPUs and their connection speed:

• 19200: MT6219, MT6223, MT6225, MT6226, MT6235, MT6236, MT6238, MT6239, MT6253, MT6268
• 115200: MT6250, MT6251, MT6252

* MTK models require to be connected to PC COM port via original COM data cable or using any COM port emulator.

Cable pinout for WX-series and Alcatel MTK-based models
Mini USB pinout for WX-series and Alcatel MTK-based models
Micro USB pinout for Motorola and Alcatel MTK-based models
Fly DS105/DS120
Fly Q420/E176 Huawei G6150/G7010
Huawei G6603 G7007
ZTE-G N292

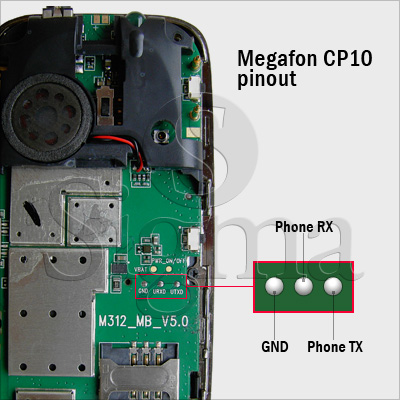

Megafon CP10

Download Prolific virtual COM-port drivers
Download FTDI virtual COM-port drivers
Download MTK USB driver v1.0948.0
